Roller Mill

Roller Mill model- Modern main equipment of flour mill production line

We provide integrated grain mill processing line Full Auto with PLC system, Full Auto - model MMRL,  Model MMT (Pneumatic Model),  Model MMT (Electronic Model), Model MMDTL etc.

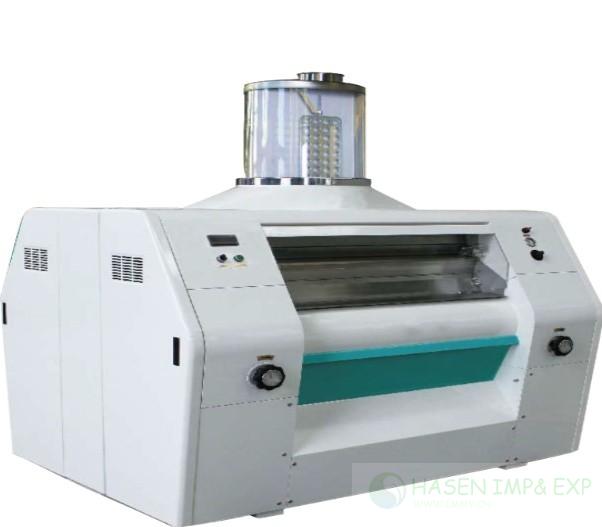

 MMRL ROLLER MILL

Application field:

Roller mill is the core host of large and medium-sized flour mill milling equipment, mainly used for wheat, black rice, barley,

maize(corn), sorghum and other grains and cereals crushing, distillery brewing raw materials crushing, grinding of other chemical raw

 materials. We offer a range of mills and optional features to meet your needs for powder making solutions.

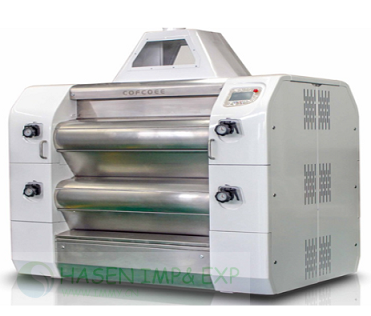

AUTO ROLLER MILL MODEL MMT model (Pneumatic Control）:

Application:
The roller mill is the main equipment for milling section in flour mills. It mainly depends on a pair of differential transmission and relative rotation rolls to break wheat, meanwhile, scrapes endosperm from wheat bran, then endosperm grinding into flour. The material can be extruded, sheared and broken during the equipment working and so as to achieve a certain grinding effect, each roller mill has two independent drive, feeding, and grinding systems and play their functions in the flour passages.

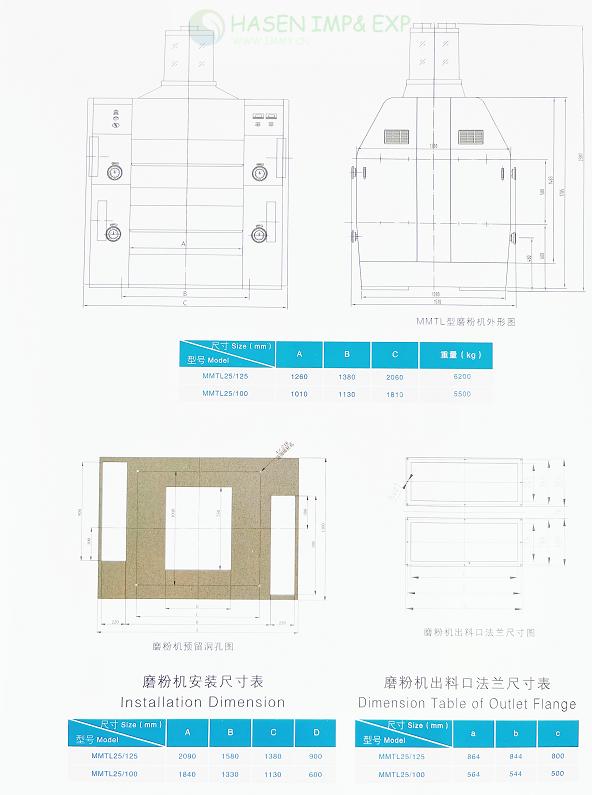

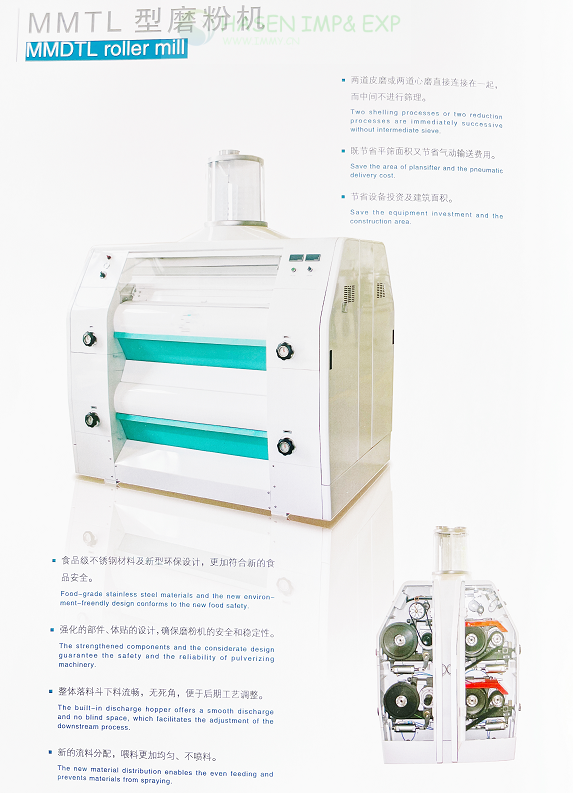

New technology of MMTL Eight Rolls Pneumatic Flour Roller Mill:
1) Two breaking systems or two reduction systems connection directly without middle sieve
2) Both saving plansifter area and save the cost of pneumatic conveying
3) Saving equipment investment cost and building area occupation.

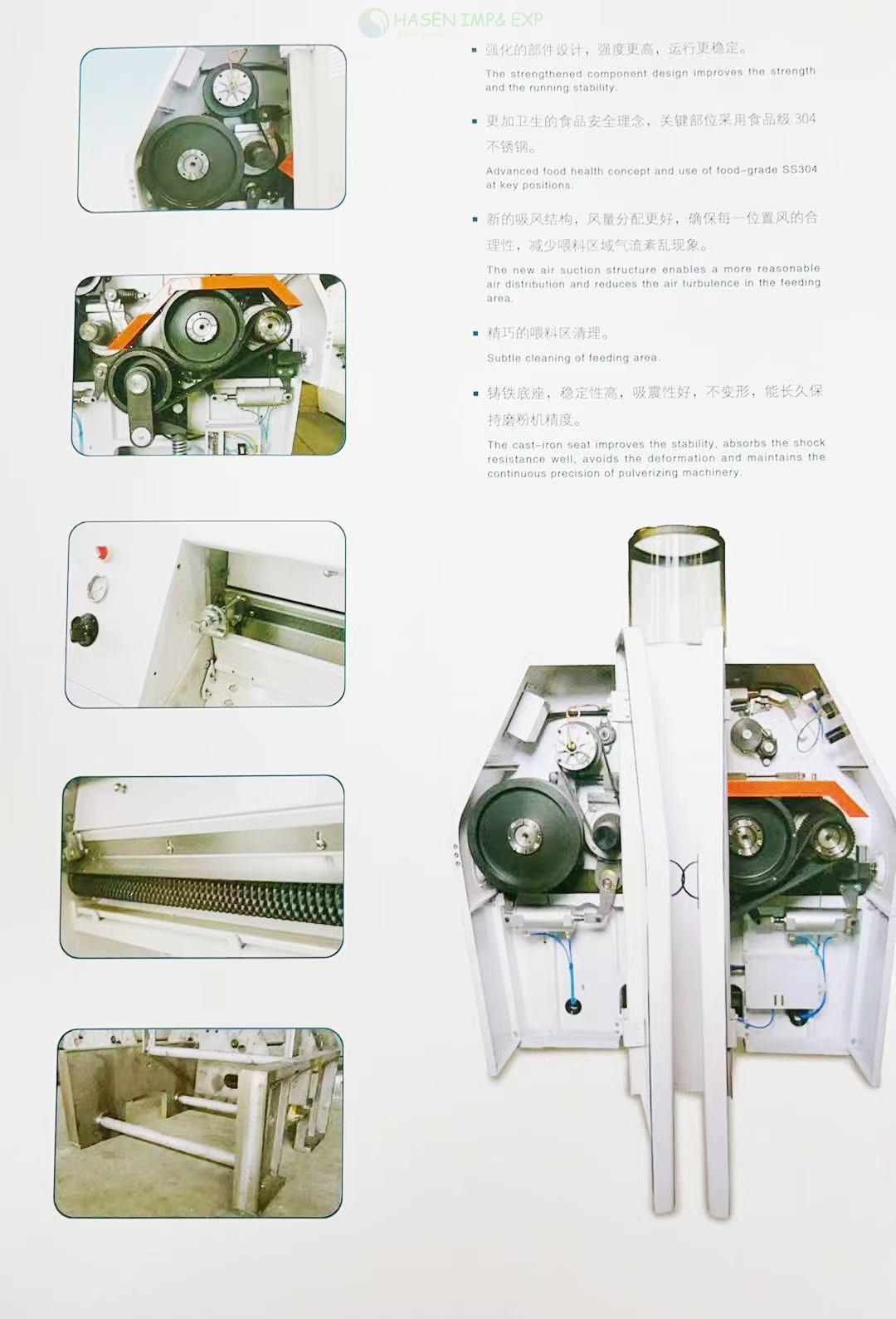

Features:

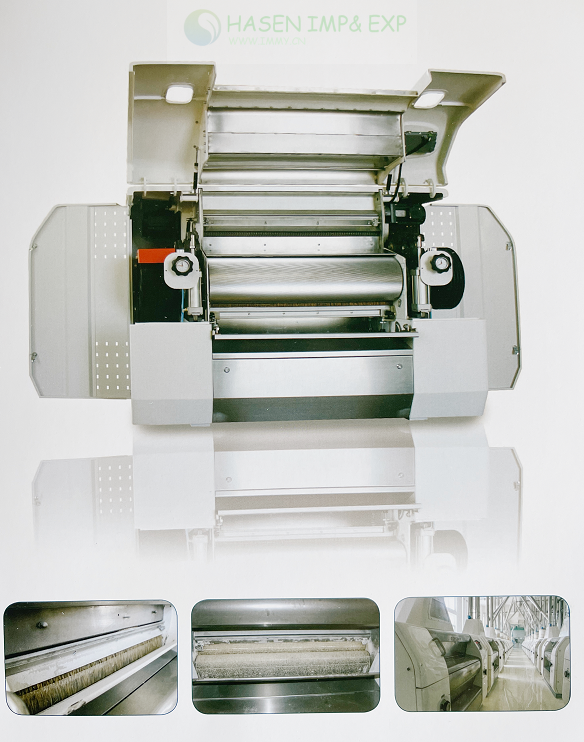

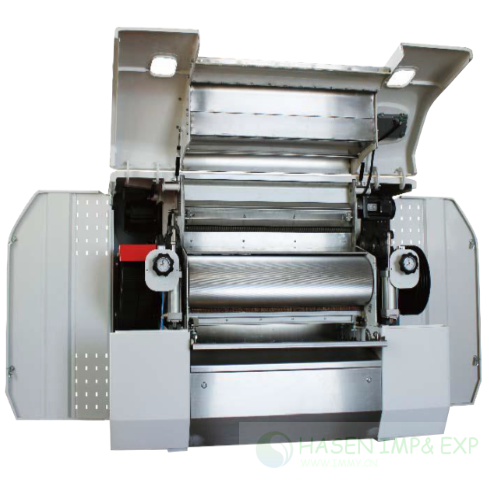

1) Rolls lay out horizontally, the material is easy to grinding area, and rolls are easier assembly, disassembly and maintenance;
2) Full pneumatic control, the machine can be controlled independently or be controlled concentrated through a remote panel;

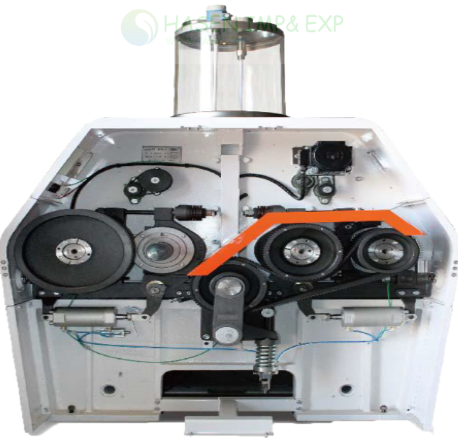

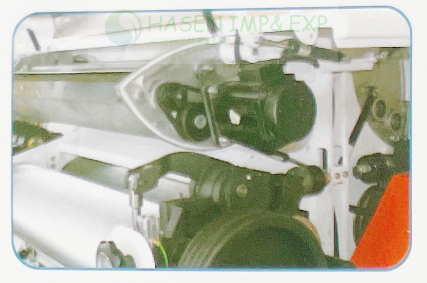

3) The fast and slow grinding rolls are driven by triple-wheel teeth wedge belts with advantages of no jump teeth, no deflection, smooth operation, and low noise;
4) Adjustable and standard self-aligning roller bearings are used for the grinding rolls to ensure highly concentric precise with rolls running, and sustain high speeds and roll pressures;
5) High quality double heads centrifugally casted rolls with dynamically balancing testing ensure smooth running and long service life;
6) Rolls are adopted the eccentric lever clutch structure, damping beams alone support, roll groups self- undertake running stress;
7) Reduction system is adopted gap air flow pressure device; it can improve the feeding condition, reduce rolls and materials temperature, and improve grinding efficiency;
8) The upper and lower split structure is designed for the two side frames of roller mill; the damping washer is fitted in the upper and lower connection point;
9) The completely enclosed structure is adopted for the machine, the static electric sprayed paint technology is used in surface treatment.

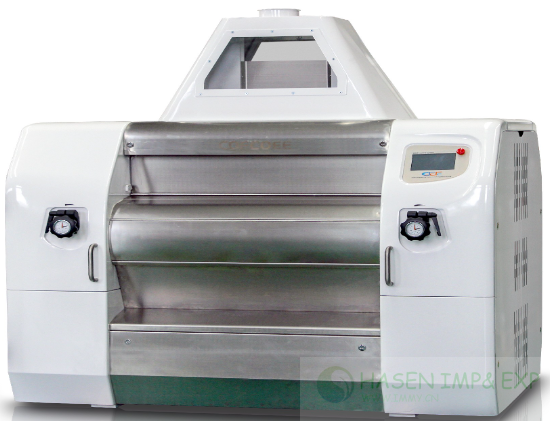

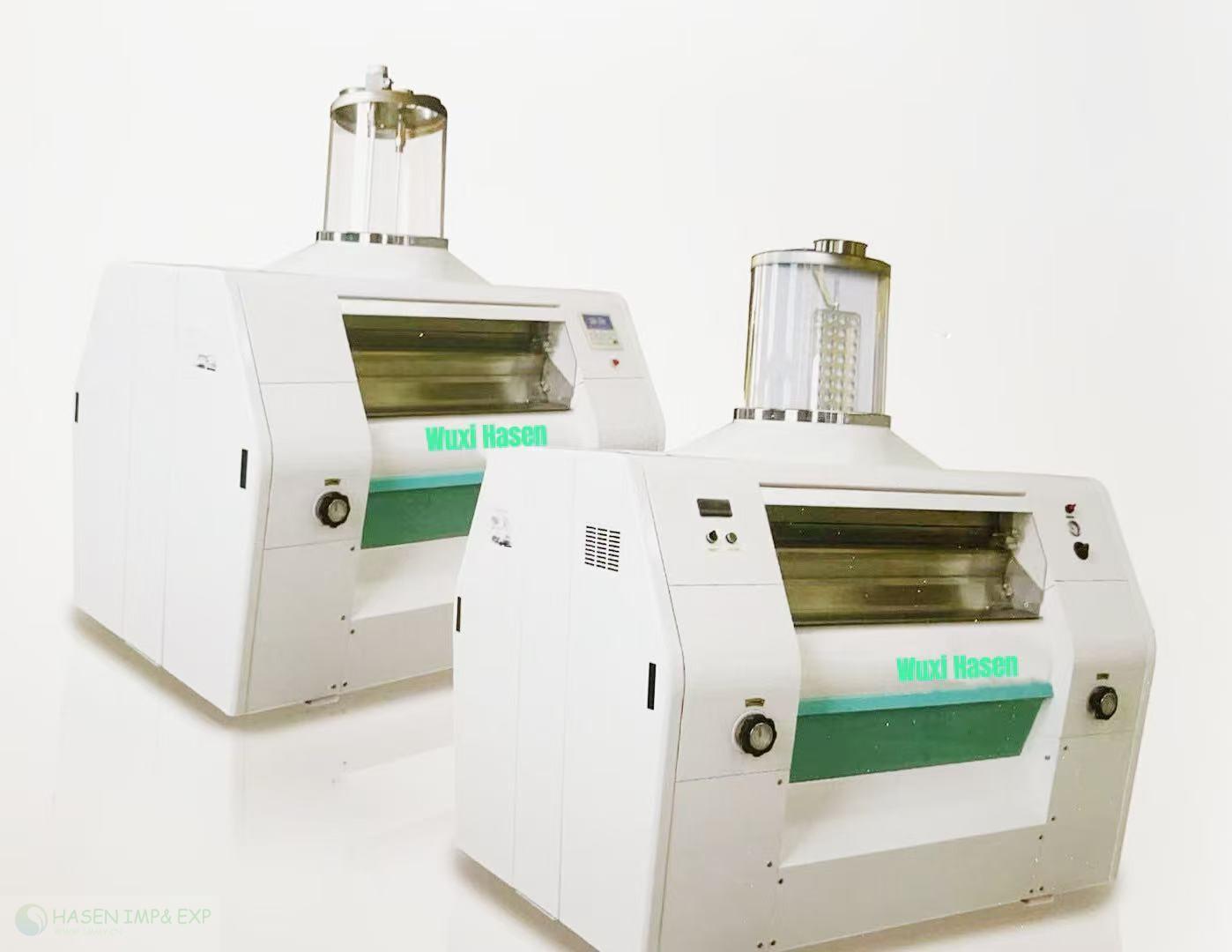

AUTO ROLLER MILL MODEL MMT (Electronic Control）

Our Roll mills come in two designs and four models:four-roll mills with roll length from to 1250mm, and eight-roll

mills with roll length from 1000mm to 1250mm.

You can choose different models flexibly according to different process and capacity.

AUTO ROLLER MILL MMTL

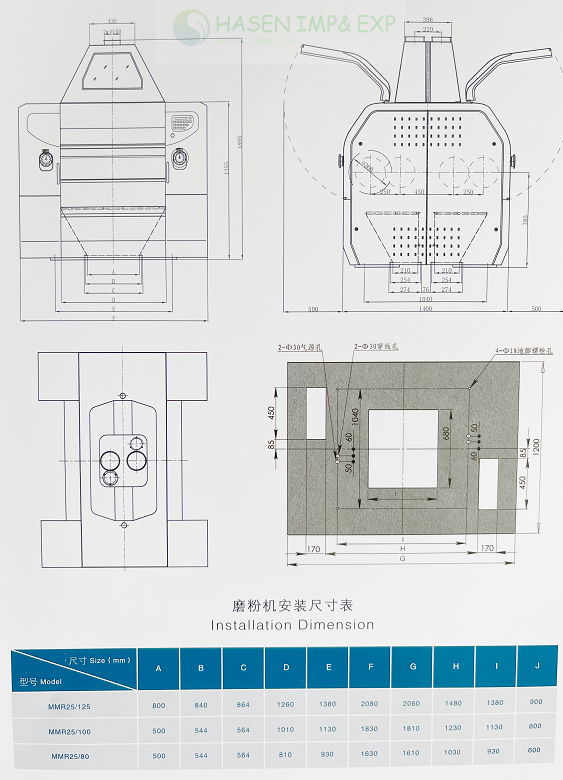

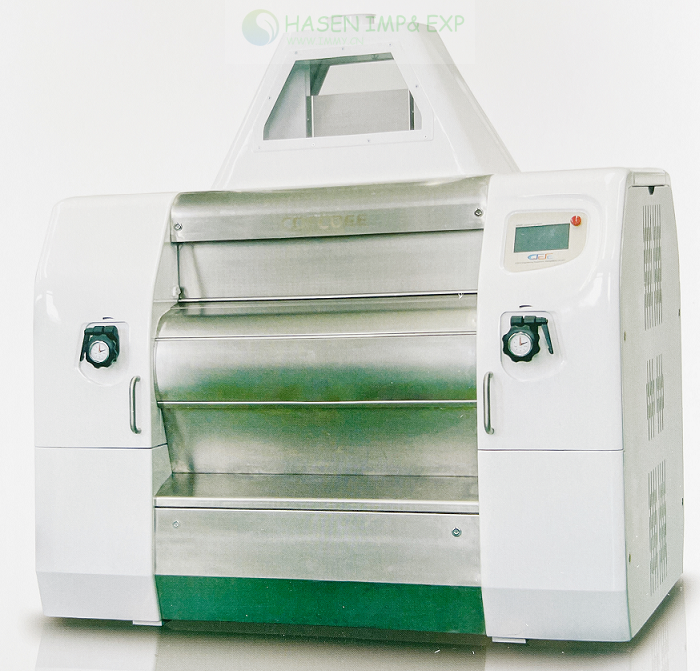

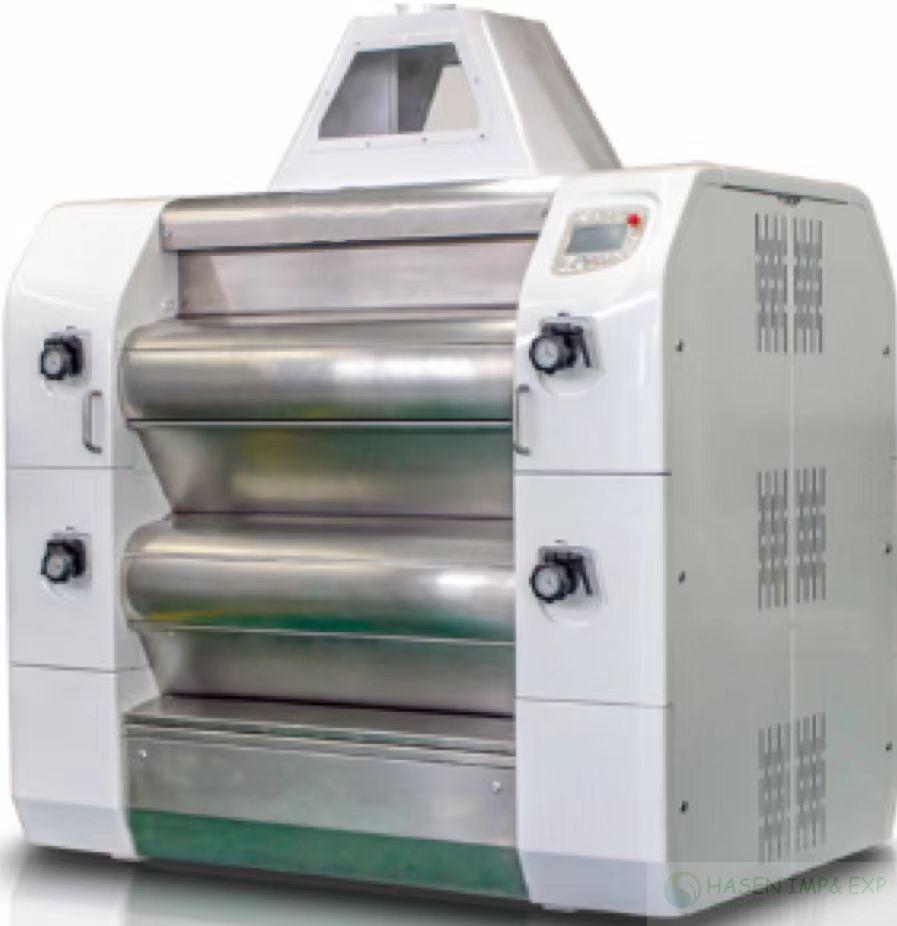

MMR ROLLER MILL (Latest Roller Mill）

Application:

The roller mill is the main equipment for milling section in flour mills. It mainly depends on a pair of differential transmission and relative rotation rolls to break wheat, meanwhile, scrapes endosperm from wheat bran, then endosperm grinding into flour. The material can be extruded, sheared and broken during the equipment working and so as to achieve a certain grinding effect, each roller mill has two independent drive, feeding, and grinding systems and play their functions in the flour passages.

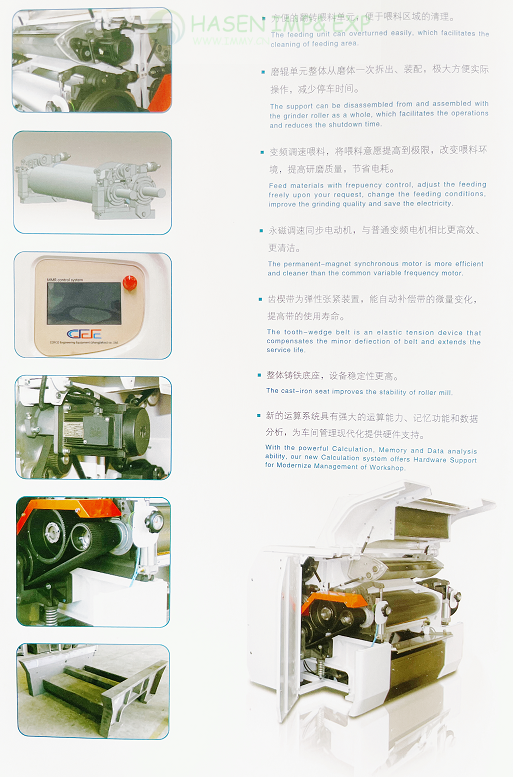

Features:

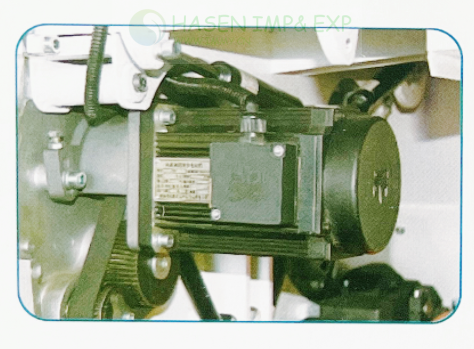

1)Use lever principle and patent measuring sensor technology to convert material flow changes into digital signals. Then use intelligent servo control technology to adjust material door size and feeding roller speed in order to ensure uniform feeding and achieve stable grinding, reduce roller damage and reduce power consumption.

2)Feeding unit is designed as independent modules with hatchback rolling and quick clean functions. It also meets food hygienic requirements.

3)Front panel is turned integrally which can achieve quick roller disassembling.

4)Material contact part is made of one-time forming food-grade stainless steel structure with no dead angle and no residue. This ensures the safety of food hygiene.

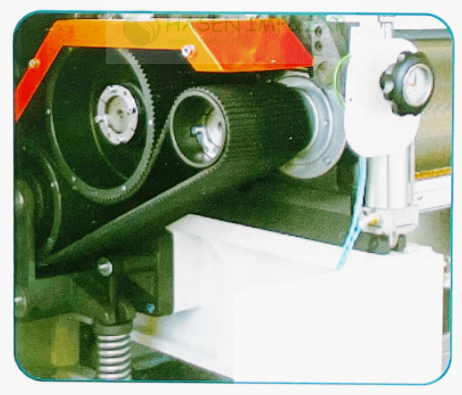

5)Ribbed belt is elastic tension device. It can automatically compensate the trace of transformation, improve the service life of the belt.

6)Easy fine-tuning rolling structure. Small cylinder lock handwheel panel buttons control is convenient and fast.

7)Combine industrial appearance and modern mold technology to realize overall streamlined appearance design. Won the national patent of appearance.

Features

Application:
The roller mill is the main equipment for milling section in flour mills. It mainly depends on a pair of differential transmission and relative rotation rolls to break wheat, meanwhile, scrapes endosperm from wheat bran, then endosperm grinding into flour. The material can be extruded, sheared and broken during the equipment working and so as to achieve a certain grinding effect, each roller mill has two independent drive, feeding, and grinding systems and play their functions in the flour passages.

Features:

1)Use lever principle and patent measuring sensor technology to convert material flow changes into digital signals. Then use intelligent servo control technology to adjust material door size and feeding roller speed in order to ensure uniform feeding and achieve stable grinding, reduce roller damage and reduce power consumption.

2)Feeding unit is designed as independent modules with hatchback rolling and quick clean functions. It also meets food hygienic requirements.

3)Front panel is turned integrally which can achieve quick roller disassembling.

4)Material contact part is made of one-time forming food-grade stainless steel structure with no dead angle and no residue. This ensures the safety of food hygiene.

5)Ribbed belt is elastic tension device. It can automatically compensate the trace of transformation, improve the service life of the belt.

6)Easy fine-tuning rolling structure. Small cylinder lock handwheel panel buttons control is convenient and fast.

7)Combine industrial appearance and modern mold technology to realize overall streamlined appearance design. Won the national patent of appearance.

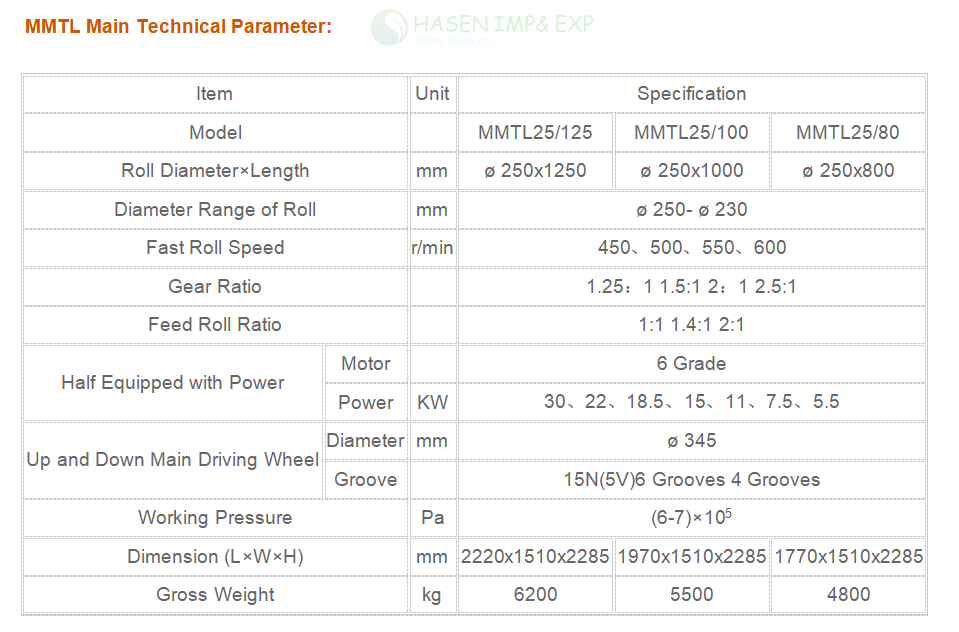

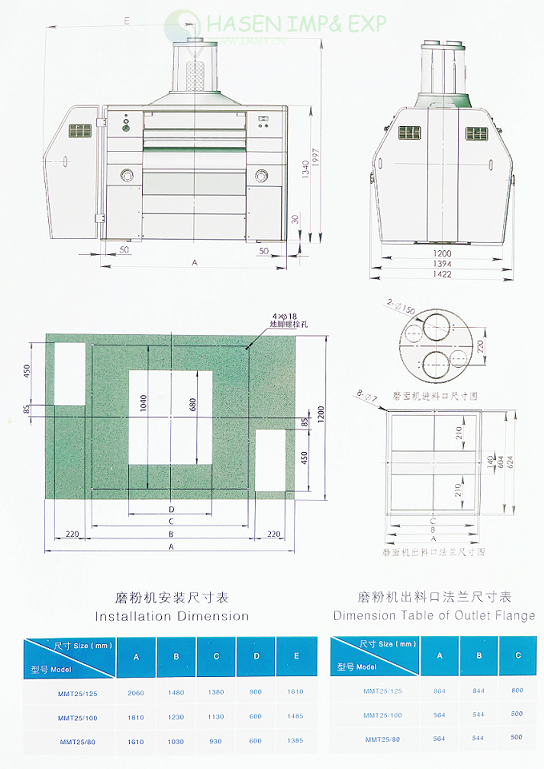

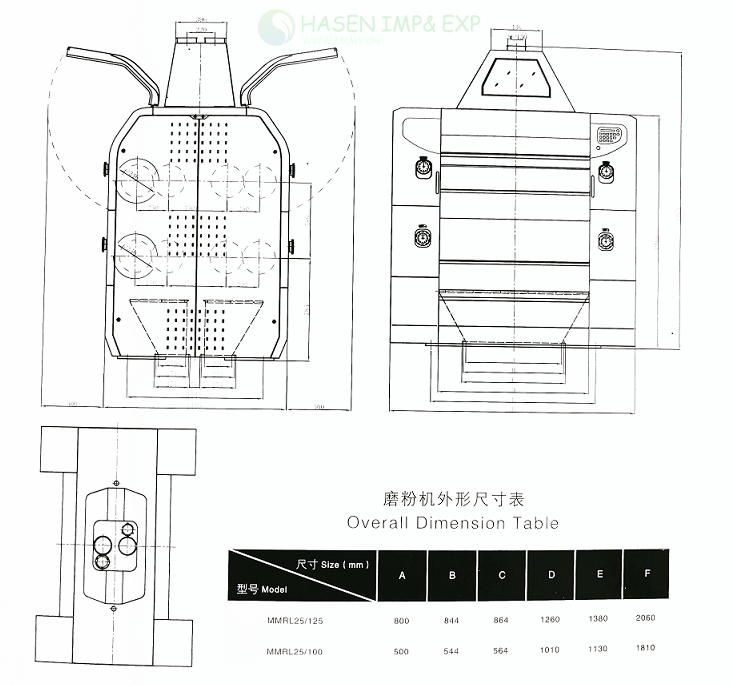

Specification of Roller mill- We provide integrated grain mill processing line Full Auto with PLC system

FAQ

Q 1,  Do  you produce DURRUM FLOUR MILL MACHINES? Whats the processing of durrum flour mill?

Durum Wheat processing plant: integrated milling solutions

Our Industries specializes in designing and manufacturing highly advanced equipment and machinery for the entire durum wheat processing cycle. Durum wheat is a complex and valuable commodity in the milling industry. Our comprehensive solutions cover all operational phases, from grain cleaning and storage to the final milling and packaging. All our machinery is engineered to ensure the highest quality semolina production and maximum yield.

Durum wheat cleaning process: Our machinery and technology

The first phase of the durum wheat processing plant is cleaning, which aims to remove impurities such as stones, foreign seeds, fragments, dust, and damaged kernels. Our Industries utilizes a complete range of machinery, including debranners and scourers for the mechanical removal of surface impurities, as well as separators and vertical aspirators to sort based on weight and size. Moisture meters prepare the product for the subsequent phases, while destoners separate any mineral particles.

A distinctive element of the Our cleaning system is the wheat sterilizer, which guarantees the complete sanitation of the durum wheat, eliminating bacterial loads, molds, and unwanted microorganisms without altering the characteristics of the kernel. In addition, the optical grain sorter automatically removes visual impurities and defective kernels using color and shape recognition technology, significantly increasing the quality and purity of the final product.

Our designs durum wheat machinery systems that combine aspiration, dimensional classification, and optical separation, which can be integrated with color sorting or Near-InfraRed analysis technologies.

Durum wheat milling: quality semolina production with our plants

The second phase is milling, the process of transforming the kernel into semolina by opening and separating the endosperm. Our Industries employs high-performance roller mills, such as the progressive reduction of the kernel, t
